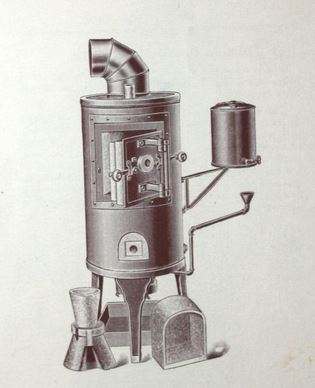

7. Melting And Muffle Furnace
Inside dimensions of muffle, 6 in. wide, 8 in, high, 8 1/2 in. deep. Opening of door frame. 8 in. x 10 in.
Price, including tank and connection, 1 length of lined pipe, one lined elbow, 1 muffle, 1 tripod, and 1 crucible.
Additional muffles, each.
Additional crucibles, 6x9 in., each.
Additional tripods, each.
This small furnace is for general assaying, crucible work, and small meltings of pure metals. When desired, it is arranged to receive the charge through the tube above, and allow the melt to flow beneath, keeping a continuous flow.
It may also be used for testing clays either in the open flame or in the muffle. There is no more perfect device for enameling on metal. The heavy door on a Crane Hinge may be opened at any point, during the process, without burning the hands.
Outside dimensions - 46 in. high, 18 in in diameter. Weight, when crated, 200 lbs.
